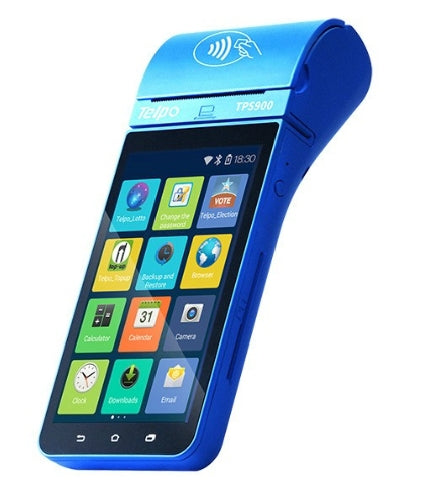

Telpo TPS900 Android EFT POS Terminal

Advanced Smart Payment Terminal | Biometric Security | EMV & PCI Certified

🔐 Secure, Smart & Versatile EFTPOS Solution



The Telpo TPS900 is a next-generation Android-based EFTPOS terminal that integrates multiple payment methods, including magnetic stripe, EMV chip, contactless (NFC), and biometric security options like fingerprint and iris recognition. Designed for banks, retail, government, and transport sectors, the TPS900 brings advanced security, flexible connectivity, and mobile convenience to the palm of your hand.





---



🔧 Technical Specifications:



💻 System



OS: Android 5.1



CPU: ARM Cortex A7, Quad-core 1.3GHz



Memory Options:



1GB RAM + 8GB Flash



2GB RAM + 16GB Flash



Expandable via TF Card (MicroSD)









---



🖥️ Display & Interface

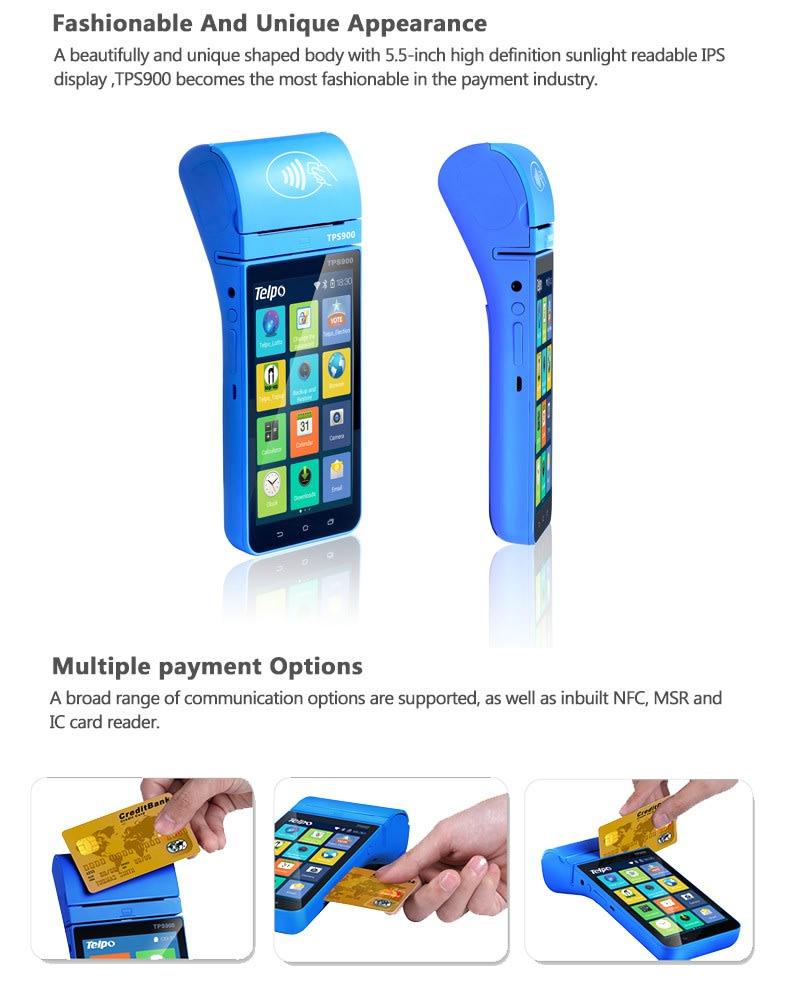

Display: 5.5” IPS Touchscreen, HD (1280×720)



Touch Interface: Softkeys / Capacitive



Camera: 5MP Autofocus (barcode scan supported)



Audio: Digital speaker output







---



🧾 Printer



Thermal Graphic Printer



Paper Width: 58mm | Roll Diameter: 35mm



Fast, reliable receipt printing







---



💳 Card Readers



Magnetic Stripe Reader: Track 1/2/3, bi-directional (ISO7810, 7811, 7812)



Smart Card Reader: ISO7816 certified



Contactless/NFC: ISO14443 Type A/B, ISO18092 (Paypass/Paywave approved)







---



🔐 Biometric Security



Fingerprint Scanner: ANSI/INCITS 378, ISO/IEC 19794-2/-4 compliant



FBI and STQC Certified





Iris Recognition (optional): STQC Certified



Face Recognition: Supported via camera + optional software







---



📶 Connectivity



Network: 2G / 3G / 4G (FDD-LTE / TDD-LTE / WCDMA / GPRS)



Wi-Fi: 802.11 b/g/n



Bluetooth: 4.0



GPS: Supported



SIM Slots: 1 or 2 SIM Cards



SAM Slots: 1 or 2 (ISO7816 compliant)



Ports: 1× Micro USB, 1× USB Type-C







---



🔋 Power



Battery Options:



2200mAh or 4400mAh (7.4V, Li-Polymer, rechargeable)





Power Supply: AC Input 100–240V, Output DC 5V/2A







---



📐 Dimensions & Durability



Size: 205mm × 82mm × 55mm



Weight: 450g



Build Quality: IP54 rated – dust and splash resistant



Certifications: CE, RoHS, EMV L1 & L2, EMV Contactless L1, PCI PTS, STQC, FBI







---



🛡️ Enterprise Ready Features



Mobile Device Management (MDM) Compatible



Customizable SDK for integration with your software



Ideal for:



Mobile banking & agency banking



Retail payment & inventory management



Government service registration (KYC, voter ID)



Transport, ticketing & logistics



Microfinance institutions









---



📦 What's in the Box:



Telpo TPS900 Terminal



Power Adapter



USB Cable



Battery



Quick Start Manual







---



✅ Why Choose Telpo TPS900?



Robust payment terminal with multi-modal biometric security



Compact, rugged, and mobile — built for field operations



Certified for global compliance: STQC, CE, EMV, PCI



Easy integration with banking, POS, or custom enterprise apps
